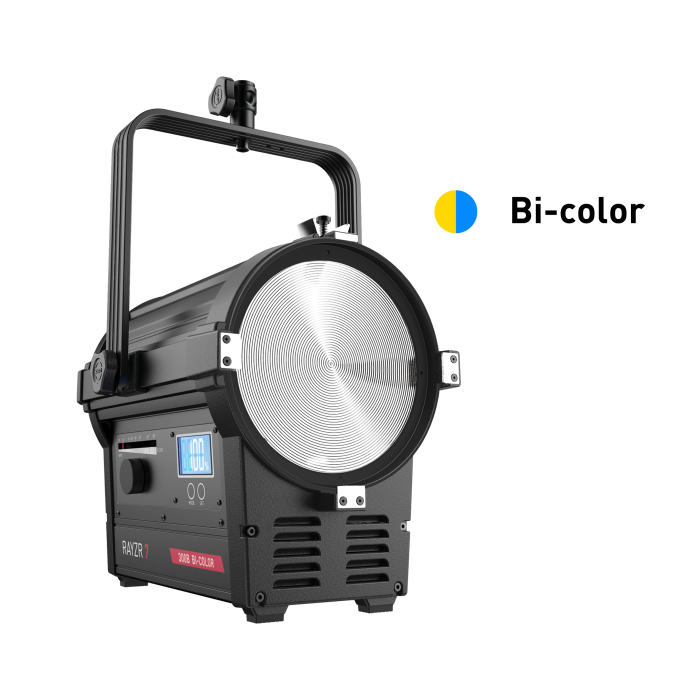

RAYZR 7 300B Bi-Color - Standard Pack
In stock
- SKU
- 123050021220
€1,499.00
excl. BTW · excl. verzendkosten
Description / RAYZR 7 300B Bi-Color - Standard Pack
| Item No. | 123050021221 |
| Net Weight | 6.4 kg (14.1 lbs) |
| Packed Weight | 8.1 kg (17.8 lbs) |
| Packed Size | 540×355×430 mm |
| LIGHT | |
| LED Power | 150 W + 150 W |
| Beam Angle | 18° - 50° (Half Peak Angle) |
| White Light |
Bi-color 3,200-5,600 K
Continuously Variable CCT |
| Color Temperature Tolerance | ± 150 K (nominal) |
| Color Rendition | TLCI 95 ~ 98, CRI 94 ± 2 |
| Dimming | 0 -100% Continuous |
| Control | RJ-45 DMX In and Through, On-Board Controller |
| Estimated LED Lifetime | 50,000 hours (15 Years of average use) |
| POWER | |
| Power Voltage Range | 90-264 V AC, 50-60 Hz |
| Input Current Range | Max. 2.2A@90V 0.73A@264V |
| Power Consumption | 172 W Nominal 192 W Maximum |
| Power Connection | Neutrik power CON TRUE1 NAC3MPX; Plug: Neutrik power CON TRUE1 NAC3FX-W |
| Battery DC Power Voltage Range | 24 - 36 V DC |
| Battery DC Input Current Range | Max.6.9A@24V 4.5A@36V |
| Battery DC Power Consumption | 162 W Nominal 180 W Maximum |
| Battery DC Power Connection | Neutrik speak ON NL2MP; Plug: Neutrik speak ON NL2FX |
| GENERAL | |
| Optical System | Focusable Fresnel |
| Lens Diameter | 170 mm / 6.7 inch |
| Thermal Design | Advanced Vapor Cooling System |
| Mounting | 16 mm / 28 mm Combo Pin (Baby 5/8 inch / Junior 1-1/8 inch Combo Pin) |
| Tilt Angle | +/- 90° |
| Housing Color | Black |
| Ambient Temperature Operation | -20 to +45º C (-4 to +113º F) |
| Protection Class | IP 20 |
| Certifications | CE, FCC, RoHS, REACH |
Package Contents:
- Rayzr 7 LED Fresnel
- Stand Mount
- Power Cable
- 4-leaf Barndoor
- Carrying Case
BRIGHTNESS
> 300 Watt
> 1.5 times brighter than 1K (1000W) tungsten fresnel
> 10” LED fresnel performance in 7” size
> Flicker free up to 15000 fps
> Suited for even the most light hungry application
COLOR & CONTROL
> TLCI up to 98
> Pure white light with truthful color rendition
> Daylight and Bi-color models available
> Even and uniform light beam
> Full control over light beam shaping
> DMX built-in and Wi-fi as an option
COMPACT & LIGHTWEIGHT
> Power efficient LED lights
> Powered from batteries without any reduction in brightness
> Smaller and lighter than other 7” fresnels
> Weight of only 6.4 KG (14.1 lbs.)
> Rugged and durable housing
| Brand | Rayzr |
|---|
