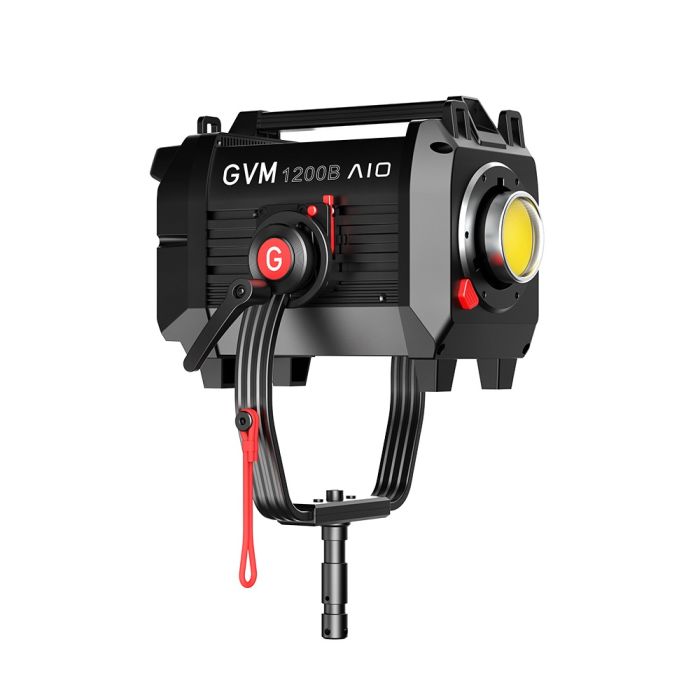

GVM AIO 1200B
In stock
- SKU
- GVM AIO 1200B
Compatible with
AIO 1200B Light Head
Light Head with build-in AC adapter and controller
Power Cable
AC cable with EU plug
Quick Start Guide
Everything you need to get started is included in the box. No additional purchases required for basic operation.
Photometric Data
Technical light output measurements at various distances and color temperatures.
| Distance | 1M | 2M | 3M |
|---|---|---|---|
| 3200K | 22640 lux / 2103 fc | 5000 lux / 464 fc | 2177 lux / 202 fc |
| 5600K | 22230 lux / 2065 fc | 4950 lux / 460 fc | 2155 lux / 200 fc |
| R | 2604 lux / 242 fc | 548 lux / 51 fc | 238 lux / 22 fc |
| G | 10200 lux / 948 fc | 2256 lux / 210 fc | 982 lux / 91 fc |
| B | 2882 lux / 268 fc | 635 lux / 59 fc | 276 lux / 26 fc |
| Distance | 1M | 2M | 3M | 5M |
|---|---|---|---|---|
| 3200K | 28500 lux / 2648 fc | 7125 lux / 662 fc | 3167 lux / 294 fc | 1140 lux / 106 fc |
| 5600K | 28100 lux / 2611 fc | 7025 lux / 653 fc | 3122 lux / 290 fc | 1124 lux / 104 fc |
| R | 3204 lux / 298 fc | 801 lux / 74 fc | 356 lux / 33 fc | 128 lux / 12 fc |
| G | 12540 lux / 1165 fc | 3135 lux / 291 fc | 1393 lux / 129 fc | 501 lux / 47 fc |
| B | 3542 lux / 329 fc | 886 lux / 82 fc | 393 lux / 37 fc | 141 lux / 13 fc |
| Distance | 0.5M | 1M | 2M |
|---|---|---|---|
| 3200K | 15420 lux / 1432 fc | 3855 lux / 358 fc | 964 lux / 90 fc |
| 5600K | 15200 lux / 1412 fc | 3800 lux / 353 fc | 950 lux / 88 fc |
Photometric measurements are taken under controlled laboratory conditions. Actual performance may vary.
GVM AIO 1200B Specifications
Detailed technical specifications and product characteristics.
Color Specifications
- CCT
- 2,700K – 6,800K
- CRI
- ≥97
- TLCI
- ≥97
- SSI (Tungsten)
- 50
- SSI (D56)
- 74
- TM-30 RF (Average)
- 93
- TM-30 RG (Average)
- 100
Power Specifications
- Max Power Consumption
- 1,250W
- Max Power Output
- 1,000W
- AC Operating Voltage
- 100V ~ 240V / 50-60 Hz
Optical Specifications
- Native Beam Angle
- 35º
- Included Flat Diffuser Beam Angle
- 95º
Environmental Specifications
- Weather Resistance Rating
- IP21
- Operating Temperature
- -20ºC ~ 45ºC / -4ºF ~ 113ºF
- Storage Temperature
- -40ºC ~ 85ºC / -40ºF ~ 176ºF
- Cooling Method
- Active (onboard fans)
- Lamp Head Fan Noise Levels Smart Mode
- Variable
- Lamp Head Fan Noise Levels High Speed Mode
- 40 dBa
- Lamp Head Fan Noise Levels Medium Speed Mode
- 35 dBa
- Lamp Head Fan Noise Levels Silent Mode
- 0 dBa
Control and Firmware
- Control Methods
- On-board: Bluetooth, Extension Port: (optional) DMX512-A, LumenRadio CRMX, Art-Net/sACN, RDM
- Control Ports
- 1x Extension Port
- Firmware Upgradeable
- Bluetooth, USB-C
- Wireless Range (Bluetooth & CRMX)
- ≤100m / ≤328.1ft
Dimensions
- Lamp Head (without Yoke)
-
69.1 x 38.8 x 13.6cm
27.2 x 15.3 x 5.4in - Lamp Head (with Yoke)
-
82.9 x 56.6 x 15.4cm
32.7 x 22.3 x 6.1in - Flat Diffuser
-
68.4 x 37.5 x 4.0cm
26.9 x 14.8 x 1.6in - Rolling Hard Case (Optional)
-
94.1 x 37.2 x 66.4cm
37.1 x 14.7 x 26.2in
Weight
- Lamp Head (without Yoke)
- 16.25kg / 35.83lbs
- Removable Yoke with Junior Pin
- 2.40kg / 5.29lbs
- Flat Diffuser
- 2.00kg / 4.45lbs
- AC Power Cable (6m)
- 0.80kg / 1.76lbs
- Rolling Hard Case (Optional)
- 2.02kg / 4.45lbs
Specifications are subject to change without notice. Please contact us for the most current information.
